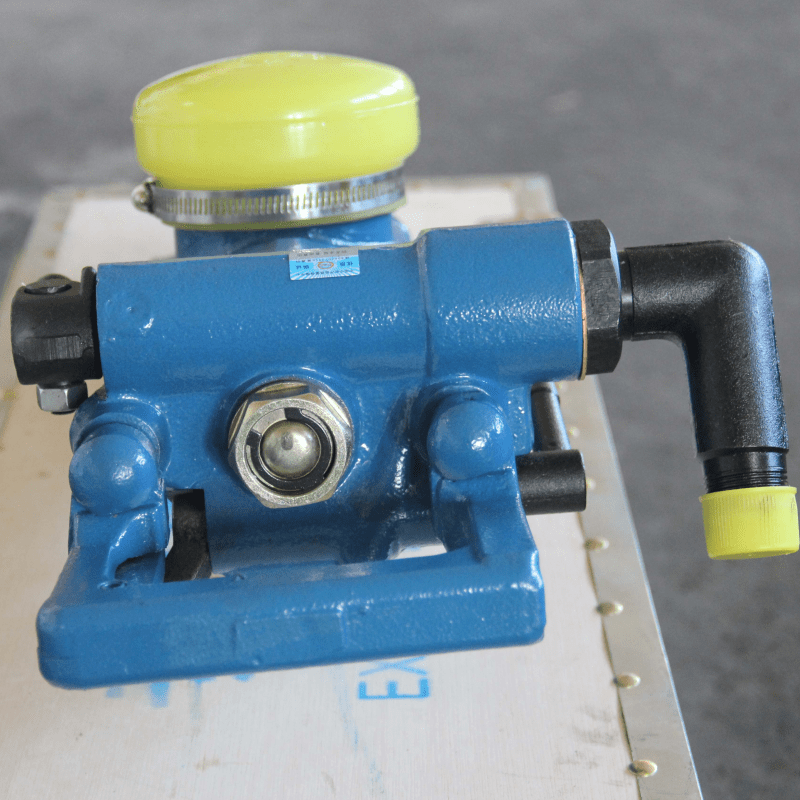

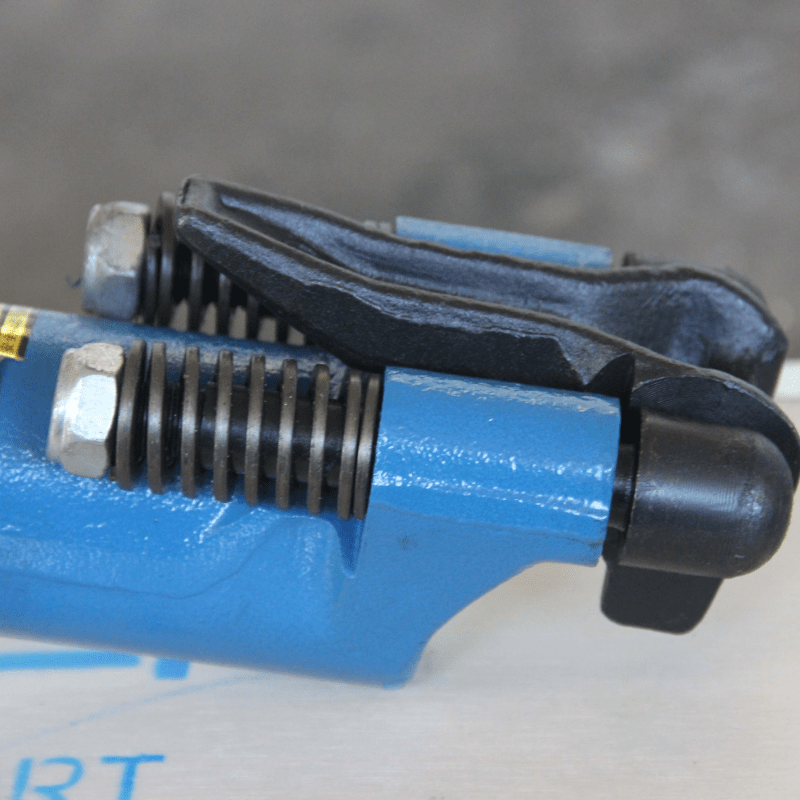

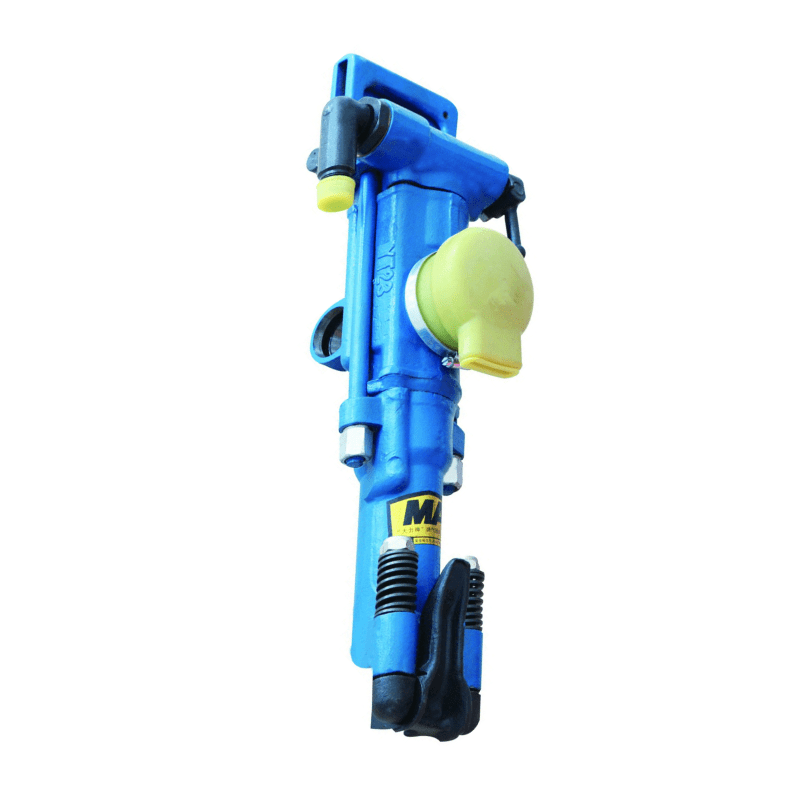

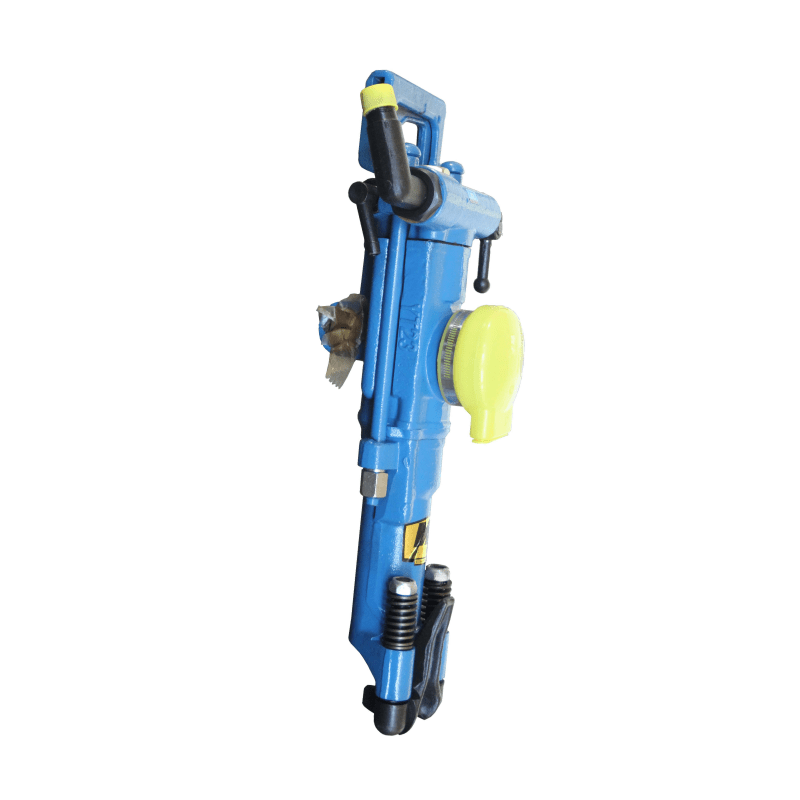

YT23 rock drill - efficient and durable mining and engineering drilling tool

YT23 rock drill - efficient and durable mining and engineering drilling tool

Overview
Recommended Products

Product general information

Place of Origin:	China
Brand Name:	Realon
Model Number:	YT23
Certification:	Provide

Commercial terms of Products

Minimum Order Quantity:	10
Price:	190-300$/set
Packaging Details:	Plywood box, calcium plastic box, Boutique plywood case
Delivery Time:	7-15 days
Payment Terms:	T/T
Supply Ability:	100 units per month

Description

YT23 air-leg rock drill is a high-efficiency air-leg rock drill. It is mainly used for rock drilling in mining and tunneling, and is also an important tool in railway, water conservancy construction and national defense stone engineering. When matched with FY200A oiler and FT160A air leg, it can perform wet rock drilling on medium-hard and hard rocks, and drill horizontal and inclined blastholes; it can also be installed on a trolley for use after removing the air leg.

Applications

1. Mining

Applicable to rock drilling operations in coal mines, metal mines and non-metallic mines.

It can drill blasting holes on hard or medium-hard rock layers to improve mining efficiency.

2. Tunnels and underground projects

Used for drilling operations in tunnel projects such as railways, highways, subways, and water conservancy.

Applicable to construction environments with hard rocks, and can be used with equipment such as drill rods and pneumatic picks.

3. Stonework and quarry

Used for stone mining in quarries and drilling operations before cutting.

Applicable to the processing of building stones to improve the production capacity of quarries.

The YT23 rock drill is widely used in various engineering environments that require drilling and blasting operations due to its high efficiency, durability and strong adaptability.

Competitive Advantage:

1. High-efficiency rock drilling

Strong impact force: large impact energy, high impact frequency (≥37Hz), improve drilling efficiency.

Widely applicable: suitable for hard and medium-hard rocks, drilling diameter 34-42mm, maximum drilling depth up to 5m.

2. Reliable and durable

High-quality materials: key components are made of high-quality alloy steel, with strong wear resistance and long Service life.

Compact structure: optimized design reduces wear, improves durability, and is suitable for harsh construction environments.

3. Convenient operation and simple maintenance

Ergonomic design: reasonable layout of operating handles, reduces labor intensity and improves working comfort.

Easy-maintaining structure: standardized parts, easy maintenance, and low maintenance cost.

4. Economical and efficient, cost-effective

Low gas consumption: at 0.63MPa air pressure, gas consumption ≤80L/s, saving energy costs.

High cost-effectiveness: compared with imported brands, the performance is close but the price is more competitive and the maintenance cost is lower.

Specifications

YT23D Pneumatic Rock Drill
Weight	24		kg
External Dimensions（L W H）	668X232X202		mm
Cylinder Diameter	70		mm
Air Pressure	0.40 ~ 0.63		MPa
Impact Energy	≥65(0.63MPa)		J
	≥57(0.5MPa)
	≥44(0.4MPa)
Rock Drilling Air Consumption	≤80(0.63MPa)		L/s
	≤52(0.5MPa)
	≤45(0.4MPa)
Impact Frequency Of Rock Drill	≥32 (0.63MPa)		Hz
	≥31 (0.5MPa)
	≥30 (0.4MPa)
Torque	≥18 (0.63MPa)		N.m
	≥15 (0.5MPa)
	≥12 (0.4MPa)
Use Water Pressure	0.2 ~ 0.3		MPa
Air Pipe Inner Diameter	19		mm
Water Pipe Inner Diameter	13		mm
Drilling Diameter	34~42		mm
Suitable Max Drilling Depth	5		m
Working Temperature	-30~50		℃
Shank Size	H22x108±1		Mm
FY200A Model Oil Lubricator
Weight	1.2		kg
Oil Capacity	0.2		L
FT160A Air leg
Weight	17	kg
Air leg Length	1668	mm
Propulsion Stroke	1338	mm
Cylinder Inner Diameter	65	mm
