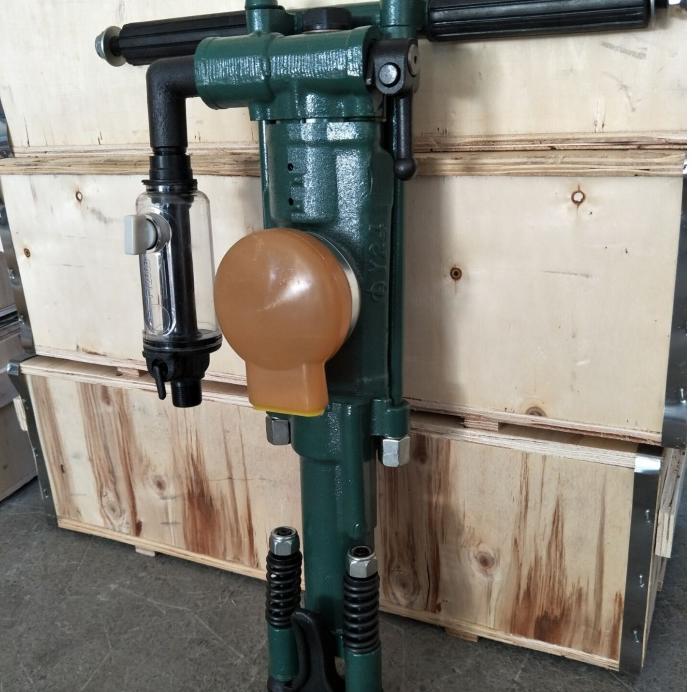

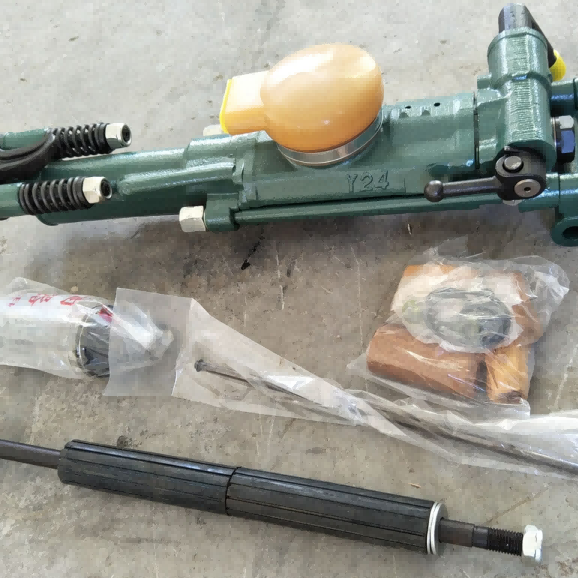

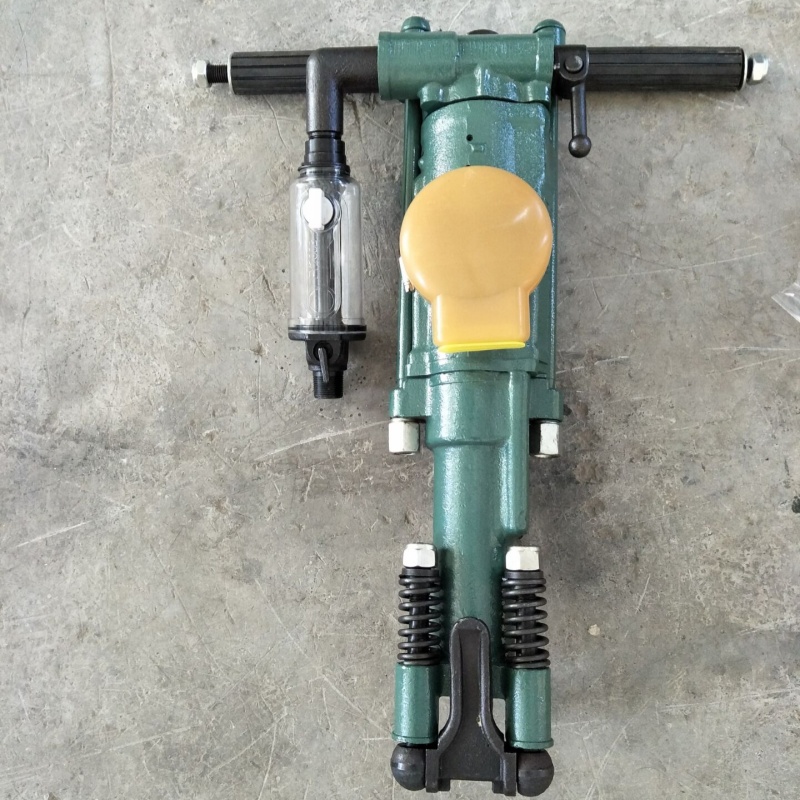

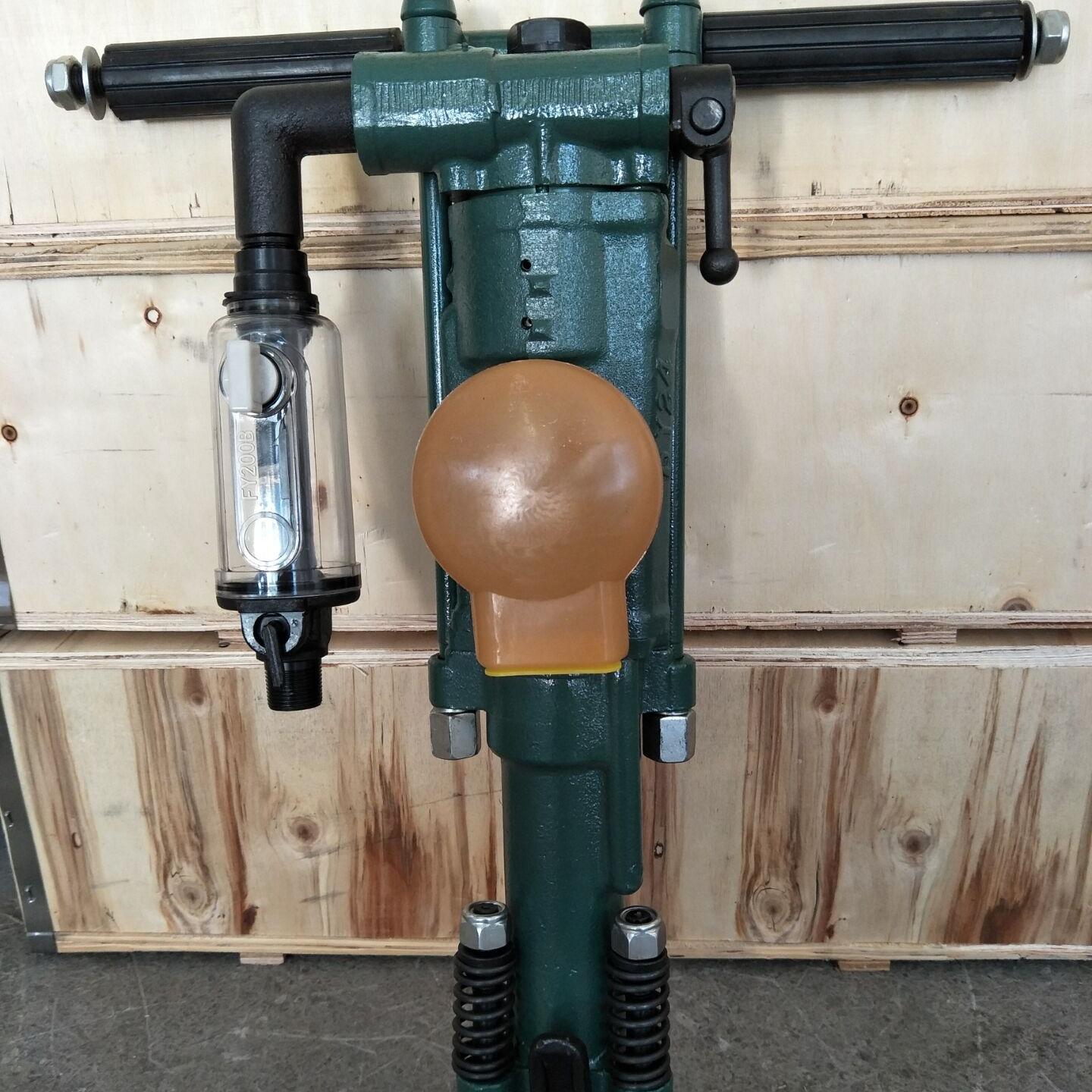

Reliable manufacturer supplies Y24 rock drill for mining
The Y24 rock drill is widely used in mining, tunneling, construction, quarrying, geological exploration, water conservancy, municipal engineering and military engineering due to its high efficiency, flexibility, simple operation and high efficiency and durability.
- Overview
- Recommended Products
Product general information
Place of Origin: |
China |
Brand Name: |
Realon |
Model Number: |
Y24 |
Certification: |
Provide |
Commercial terms of Products
Minimum Order Quantity: |
10 |
Price: |
160-215$/set |

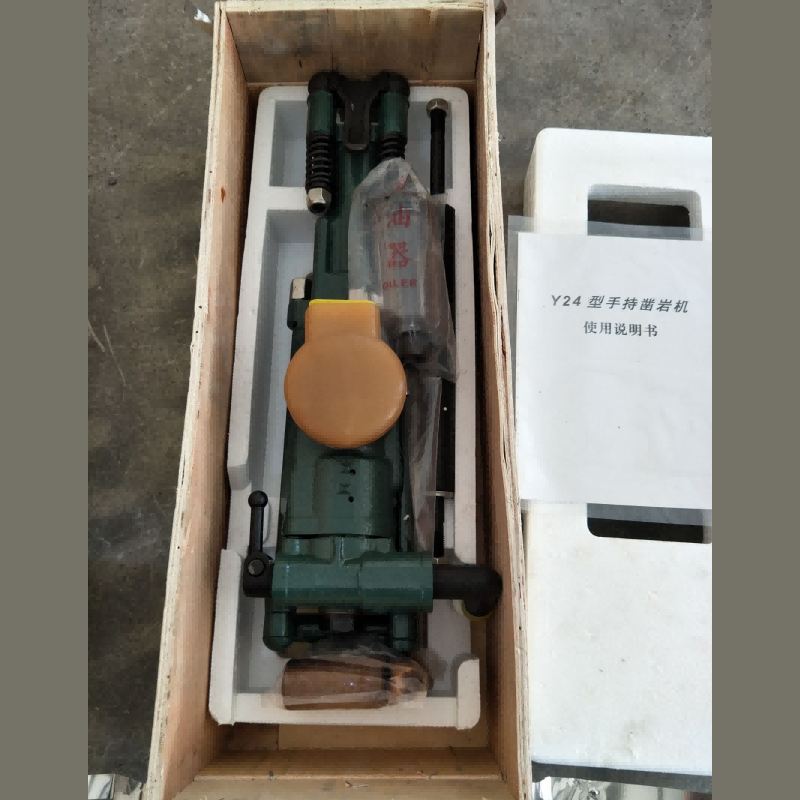

Packaging Details: |
Plywood box, calcium plastic box, Boutique plywood case |
Delivery Time: |
7-15 days |
Payment Terms: |
T/T |
Supply Ability: |
120units per month |
Description
The Y24 rock drill is widely used in mining, tunneling, construction, quarrying, geological exploration, water conservancy, municipal engineering and military engineering due to its high efficiency, flexibility, simple operation and high efficiency and durability.
Applications
1. Mining:
Used for drilling operations in small and medium-sized mines, drilling blasting holes, exploration holes or ore sampling holes.
Assisting large mines to repair rock surfaces or clean up mine tunnels.
2. Construction engineering:
Used for drilling rock foundations in building foundation construction to ensure the stability of the building foundation.
Used for drilling holes in rock layers in deep foundation pit excavation
3. Quarry:
Used for stone mining, drilling small mining holes, and separating large pieces of stone.
Used for repairing stone surfaces or cleaning gravel in quarries.
4. Municipal engineering:
Used for rock drilling in urban underground projects (such as subways and underground pipelines).
Used for drilling rock roadbeds in mountain road construction.
Competitive Advantage:
1. Easy to operate:
Humanized design, simple operation, easy to use, reducing the training cost of operators.
Easy maintenance, key components are easy to disassemble and replace, reducing maintenance costs.
2. Economical:
Reasonable price, high cost performance, suitable for small and medium-sized enterprises and individual users.
Low operating cost, low energy consumption, low maintenance cost.
3. Wide range of application fields
Can adapt to different rock conditions and operating requirements, showing good adaptability and reliability.

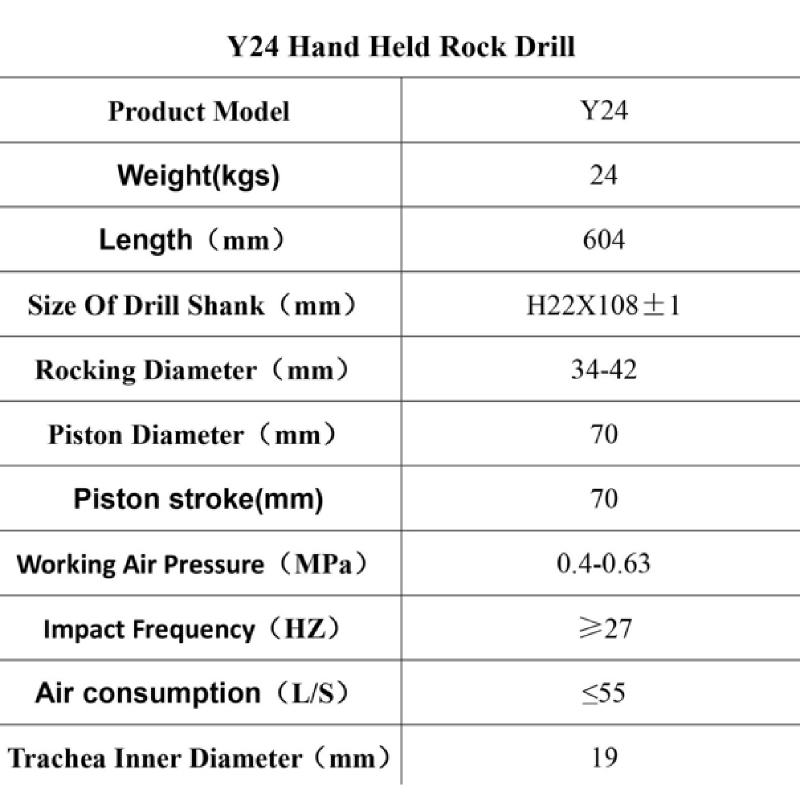

Specifications
Y24 HAND HELD Rock Drill | |
Product Model |
Y24 |
Weight (kgs) |
24 |
Length（mm） |
604 |
Size Of Drill Shank（mm） |
H22X108±1 |
Rocking Diameter（mm） |
34-42 |
Piston Diameter（mm） |
70 |
Piston stroke(mm) |
70 |
Working Air Pressure（MPa） |
0.4-0.63 |
Impact Frequency（HZ） |
≥27 |
Air consumption（L/S） |
≤55 |
Air Pipe Inner Diameter（mm） |
19 |
