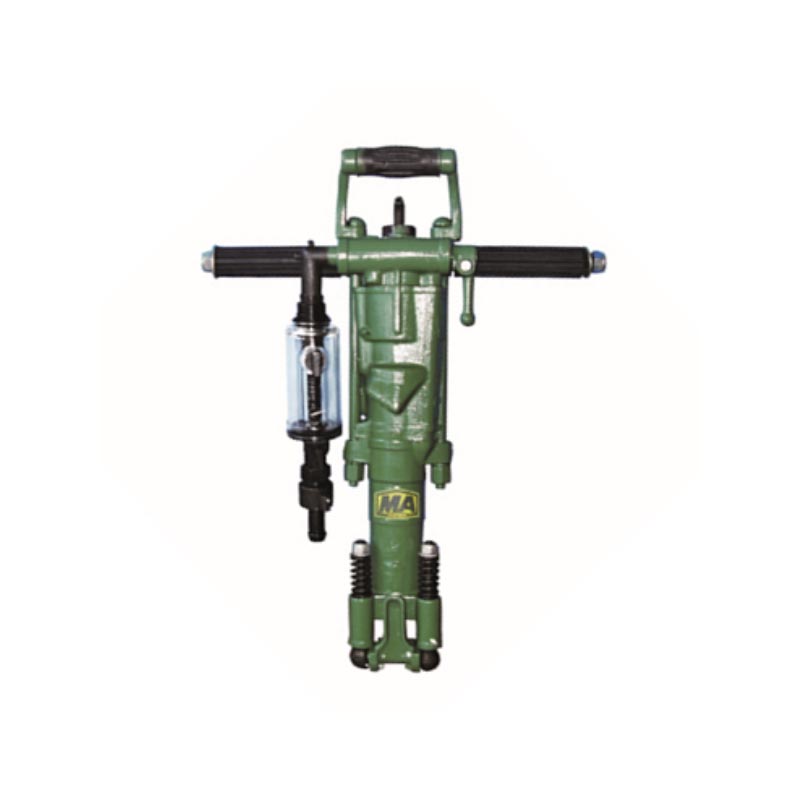

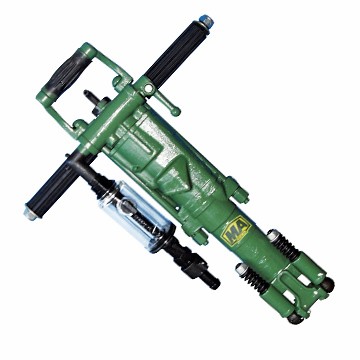

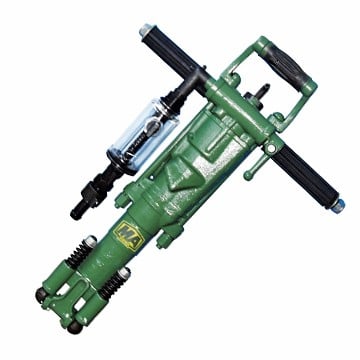

High quality pneumatic rock drill Y20LY with long service life
The Y20LY handheld air-leg dual-purpose rock drill is a light rock drill suitable for dry or wet operation on medium-hard or hard (f8-18) rocks. The blasthole diameter is Φ34-Φ40 mm and the effective drilling depth can reach 3 meters.
- Overview
- Recommended Products
Product general information
Place of Origin: |
China |
Brand Name: |
Realon |
Model Number: |
Y20LY |
Certification: |
Provide |
Commercial terms of Products
Minimum Order Quantity: |
15 |
Price: |
150-200$/set |
Packaging Details: |
Plywood box, calcium plastic box, Boutique plywood case |
Delivery Time: |
7-15 days |
Payment Terms: |
T/T |
Supply Ability: |
80 units per month |
Description
The Y20LY handheld air-leg dual-purpose rock drill is a light rock drill suitable for dry or wet operation on medium-hard or hard (f8-18) rocks. The blasthole diameter is Φ34-Φ40 mm and the effective drilling depth can reach 3 meters. The machine can be handheld to drill downwards. When equipped with the FTI00 air leg, it can be used as an air-leg rock drill to drill horizontal and inclined blastholes in various caverns. It is an indispensable machine for various mines, quarries, farmland capital construction, mountain road construction, reservoir construction, tunnel and channel excavation for small power stations, etc.
In addition to the Y20LY oiler with a transparent shell to ensure good lubrication, this machine is also equipped with the FT100 air leg.
Applications
1. Construction Engineering
Foundation Construction: In the construction of building foundations, the Y20LY rock drill is used to drill rock foundations to provide a solid support for the foundation of the building.
Foundation pit excavation: In the process of deep foundation pit excavation, the Y20LY can be used to drill rock layers to facilitate subsequent excavation and support operations.
2. Quarry
Stone mining: In the quarry, the Y20LY rock drill is used to drill small mining holes to help separate large pieces of stone for subsequent cutting and processing.
Finishing operations: Used to trim the surface of stone or clean up the gravel in the quarry.
3. Mining
Small and medium-sized mines: The Y20LY rock drill is suitable for drilling operations in small and medium-sized mines, and is used to drill blasting holes, exploration holes or ore sampling holes.
Auxiliary mining: In large mines, the Y20LY can be used as an auxiliary equipment to trim the rock surface, clean up the mine road or perform small-scale drilling operations.
Competitive Advantage:
1. Environmental protection and safety
Low noise and low vibration: The Y20LY rock drill is designed with the comfort and safety of operators in mind, with low noise and vibration levels, reducing operator fatigue and health risks.
Environmentally friendly design: The equipment adopts an efficient pneumatic system, which reduces energy consumption and environmental pollution, and meets modern environmental protection requirements
2. Easy to operate
Easy to use: The Y20LY rock drill is user-friendly and easy to operate. It can be quickly used without complex training, which reduces the skill threshold of operators.
3. Efficient rock drilling
Strong impact force: The Y20LY rock drill adopts an efficient pneumatic system, which provides strong impact force, can quickly drill medium-hard to hard rocks, and significantly improves operating efficiency.
Fast drilling: Its optimized structural design and efficient impact system make the drilling speed faster and shorten the engineering cycle

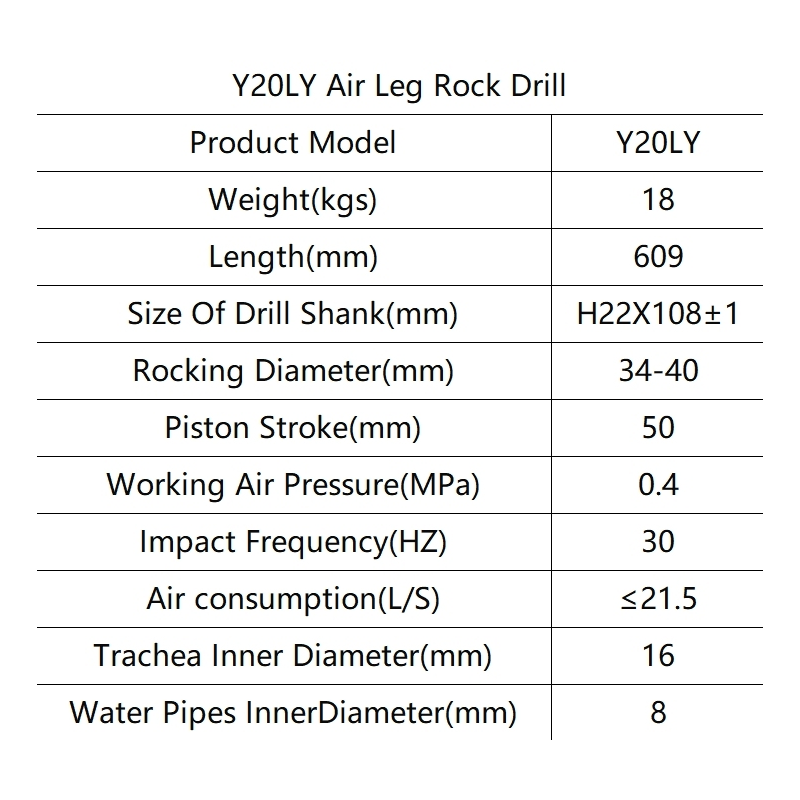

Specifications
Y20LY HAND HELD ROCK DRILL | |
Product Model |
Y20LY |
Weight (kg) |
18 |
Length（mm） |
609 |
Size Of Drill Shank（mm） |
H22X108±1 |
Rocking Diameter（mm） |
32-40 |
Piston Stroke（mm） |
50 |
Working Air Pressure（MPa） |
0.4 |
Impact Frequency（HZ） |
30 |
Air consumption（L/S） |
≤21.5 |
Air Pipe Inner Diameter（mm） |
16 |
Water Pipe Inner Diameter（mm） |
8 |
