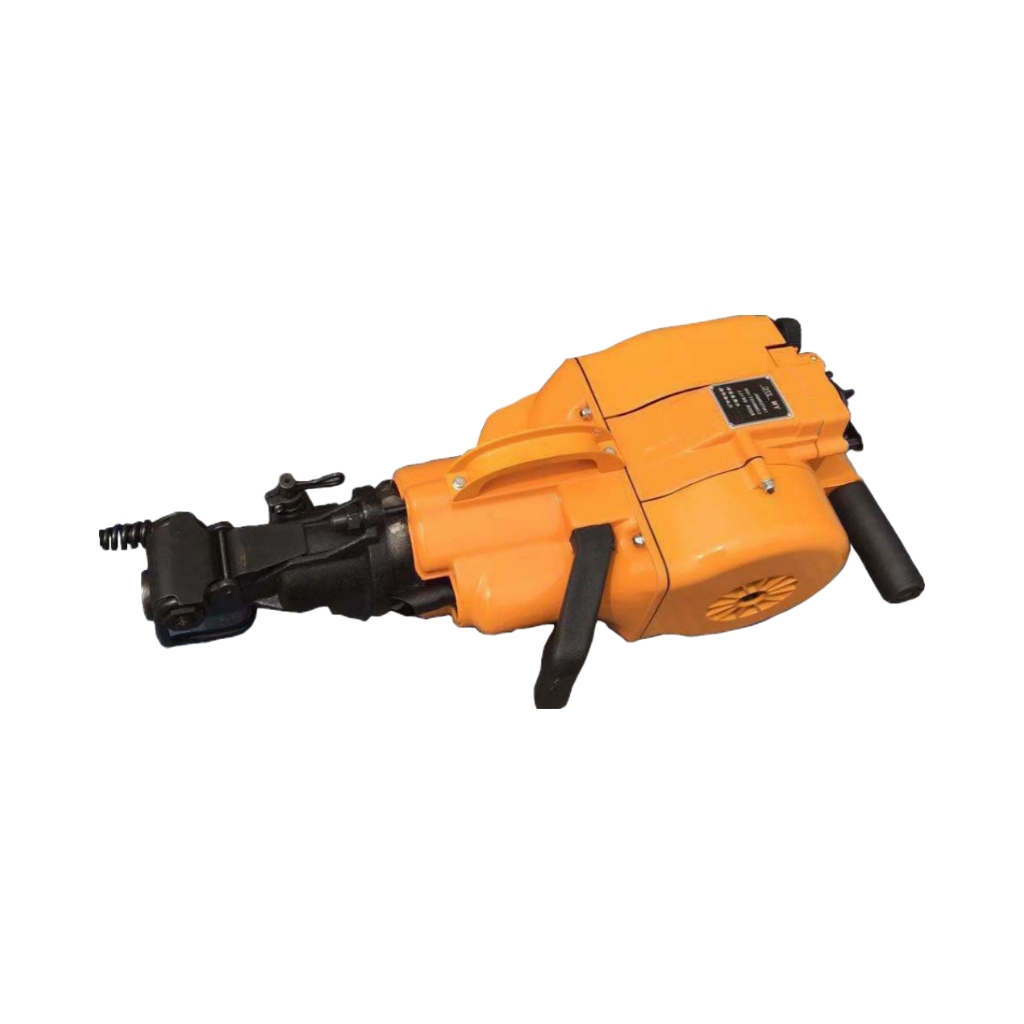

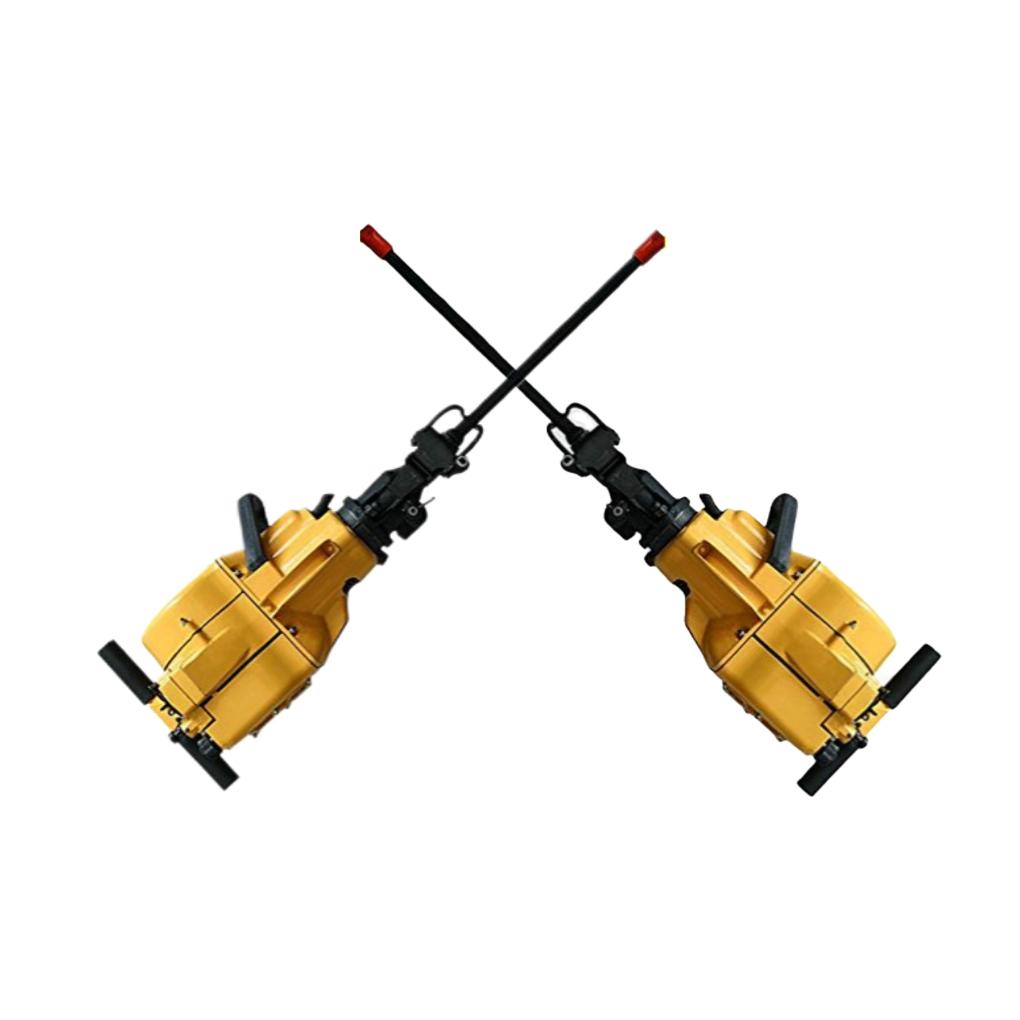

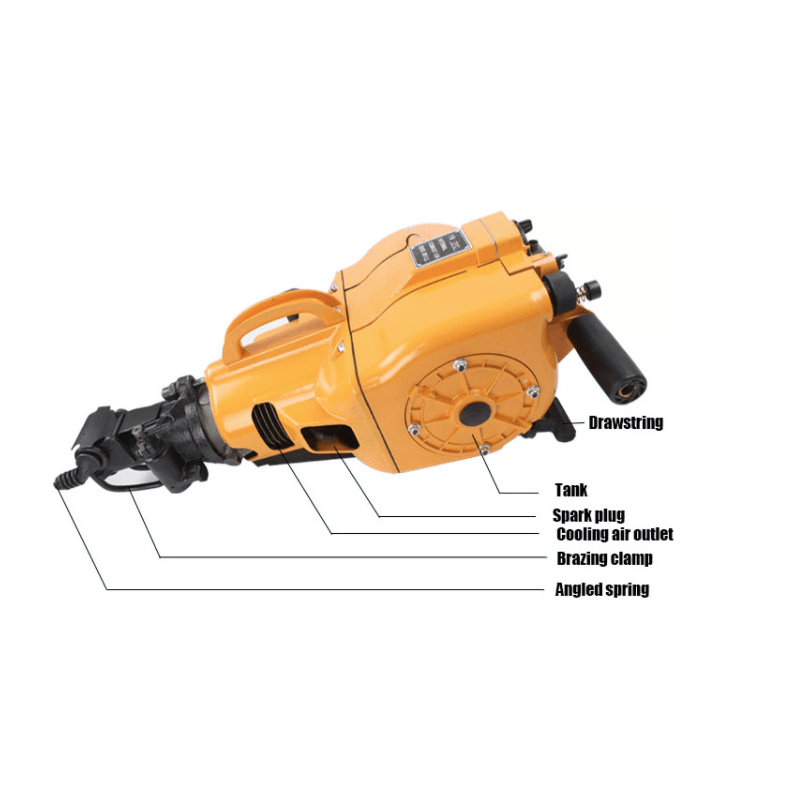

Gasoline Rock Drill Machine YN27C Internal Combustion Rock Drill Portable Jack Hammer
The YN27C is an efficient and versatile internal combustion rock drill designed for drilling and breaking rocks for a variety of applications such as mining, construction and quarrying.
- Overview
- Recommended Products
Product general information
Place of Origin: |
China |
Brand Name: |
Realon |
Model Number: |
YN27C |
Power Type: |
Gasoline |
Commercial terms of Products
Drilling Diameter: |
30mm-42mm |
Packaging Details: |
Export standard wooden case or As customer request |
Payment Terms: |
T/T |
Specifications：
1.Weight of main machine |
27kg |
2.Overall dimensions |
746x315x229mm |
3.Type of engine: |
single cylinder、 air cooled two strokes |
4.Cylinder Diameter xstroke of piston |
58x70mm |
5.Rotating speed of engine |
≥2450r/min |
6.Displacement of engine piston |
185cm³ |
7.Type of carburetor |
hand needle valve、 no floating type |
8.Ignition system |
controllable silicon、contactless system |
9.Drilling speed:(mean value of five holes) |
≥250mm/min (After holing drill ф34, with Drill Rod of 600mm in length。 is drilled vertically downward into medium hard granite(f=8-12)to make five holes in succession The mean value of the five holes are counted as the speed.) |
10.Max drilling depth |
6m |
11.Fuel consumption |
≤0.12L/m |
12.Tank capacity |
≥1.14L |
13.Mixture ratio of gasoline and lubricating oil(in volumes): |
8:1 |

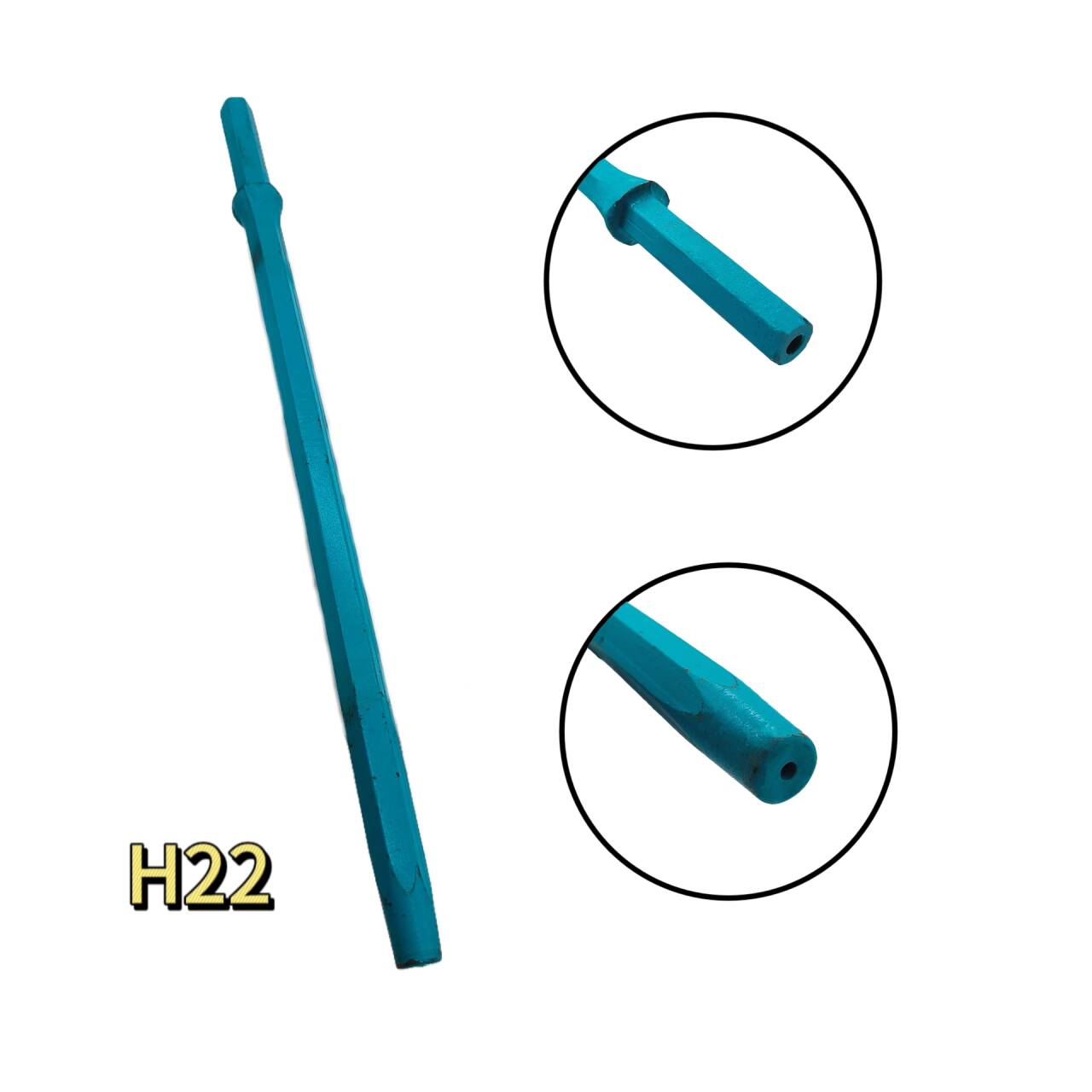

14.End of drill rod dimensions |
H22x108mm |
15.Rotating speed of drill rod |
≥200r/min |
16.Clearance of spark plug: |
1.5mm |
Description:
The YN27C is an efficient and versatile internal combustion rock drill designed for drilling and breaking rocks for a variety of applications such as mining, construction and quarrying. This portable power tool is known for its powerful performance, ease of use and reliability for working in challenging environments. Unlike pneumatic drills, the YN27C runs on a gasoline engine, making it independent of an external air compressor and ideal for remote or off-grid locations.
One of the main features of the YN27C is its ability to perform both drilling and breaking functions. It can drill holes in rock for blasting or anchoring, or it can be used as a rock breaker to demolish hard surfaces. Equipped with a high-performance engine, the drill delivers powerful impact energy to ensure effective penetration even in the hardest rock formations. Its compact and lightweight design enhances portability, allowing operators to easily transport and maneuver it in narrow or hard-to-reach areas.
The YN27C internal combustion rock drill is a reliable and versatile tool that combines power, portability and ease of use. Its ability to operate independently of an external power source and its dual functionality make it an excellent choice for a variety of rock drilling and breaking tasks in demanding environments.
Applications:
The YN27C internal combustion rock drill is a versatile and powerful tool widely used in mining, construction, quarrying, and demolition industries. Its unique design and functionality make it suitable for a variety of applications, including drilling blast holes in rock, breaking concrete, and performing anchoring tasks. Unlike pneumatic or electric drills, the YN27C operates using a gasoline engine, making it highly portable and ideal for remote or off-grid locations where compressed air or electricity is unavailable. This independence from external power sources allows it to be deployed in challenging environments, such as mountainous regions or underground mining sites, where other tools may not be feasible.
Competitive Advantage:
One of the key competitive advantages of the YN27C is its dual functionality. It can function both as a rock drill and a rock breaker, eliminating the need for multiple tools and reducing equipment costs. Its high-performance engine delivers strong impact energy, enabling it to penetrate even the hardest rock formations efficiently. Additionally, the YN27C is designed for ease of use, featuring ergonomic handles and a balanced weight distribution that reduce operator fatigue and improve productivity during extended use. Its compact and lightweight design further enhances portability, making it easy to transport and maneuver in confined spaces.
Another significant advantage of the YN27C is its low maintenance requirements and durability. Built with robust materials, it can withstand harsh working conditions, ensuring a long Service life and minimizing downtime. The tool is also fuel-efficient, which helps reduce operational costs and makes it an economical choice for businesses. Furthermore, its simple design allows for quick and easy maintenance, further enhancing its cost-effectiveness.
In summary, the YN27C internal combustion rock drill stands out for its portability, dual functionality, and ability to operate in remote locations. Its powerful performance, user-friendly design, and low maintenance requirements make it a competitive and reliable choice for professionals in industries that require efficient rock drilling and breaking solutions.
